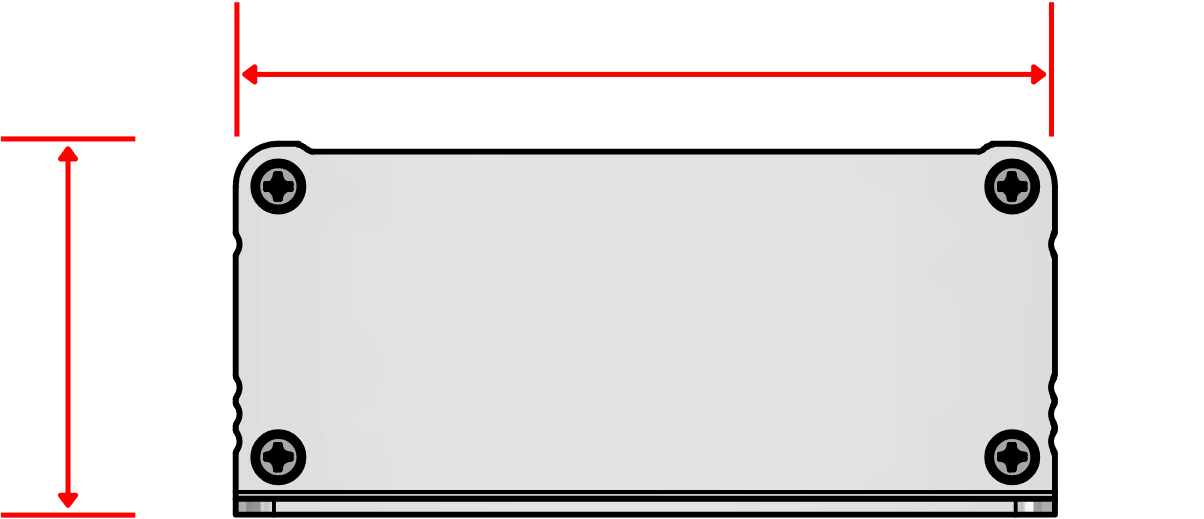

W dimension 61~141mm

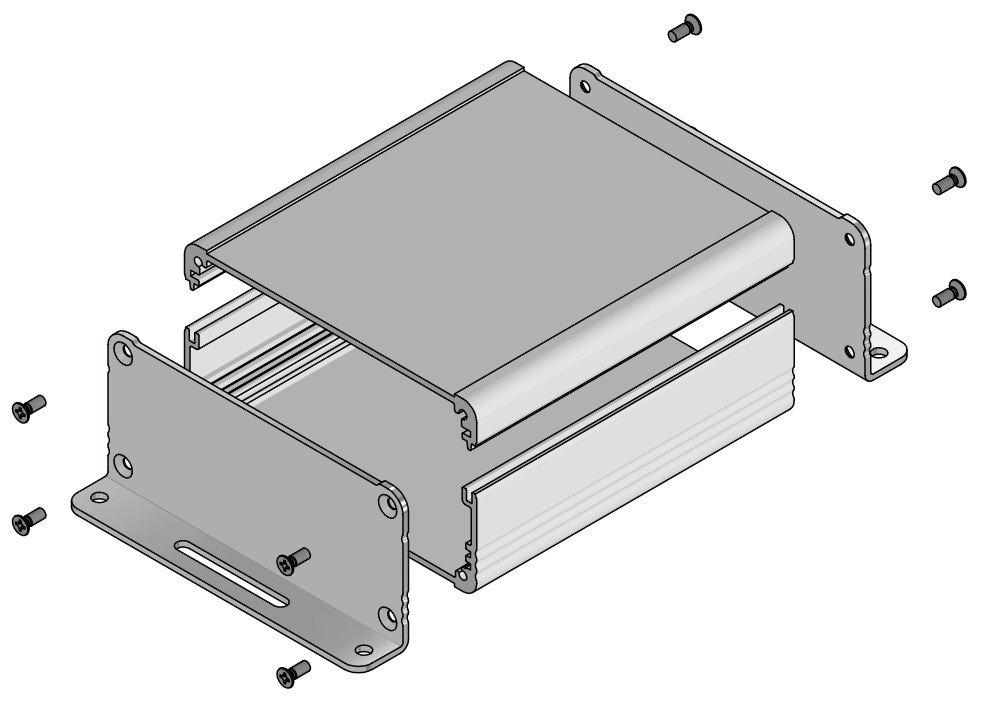

Flanged panel type

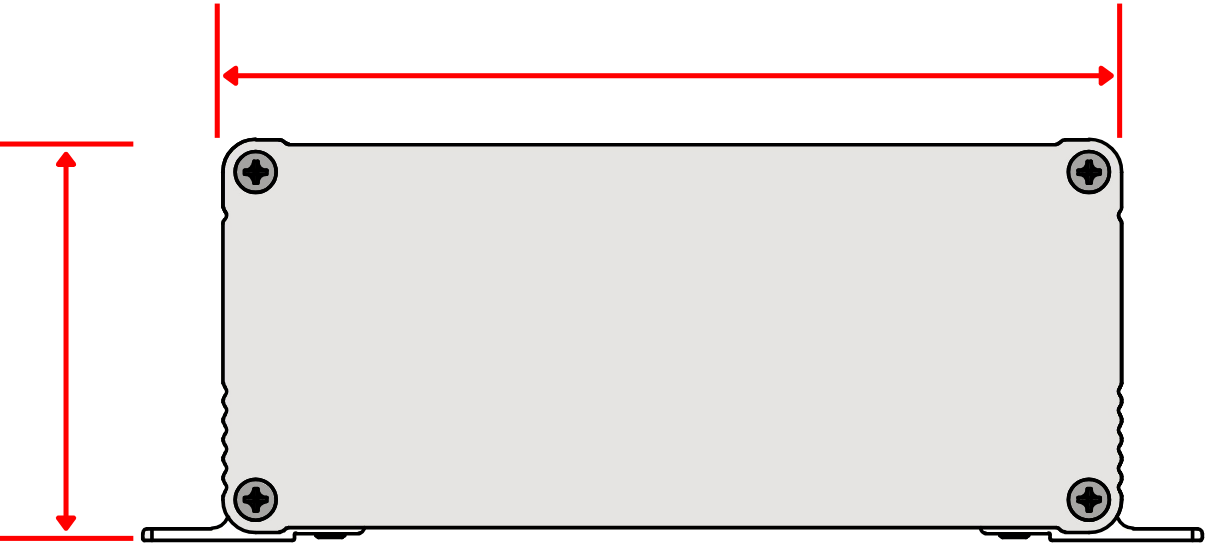

W dimension 186.5~287.5mm

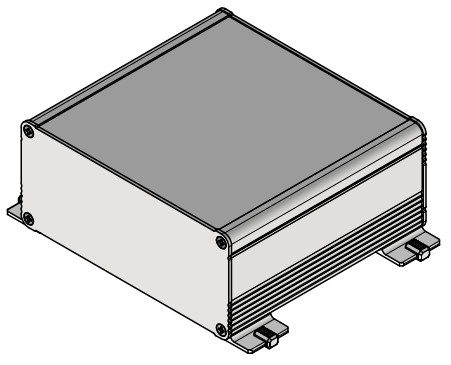

Flange bracket type

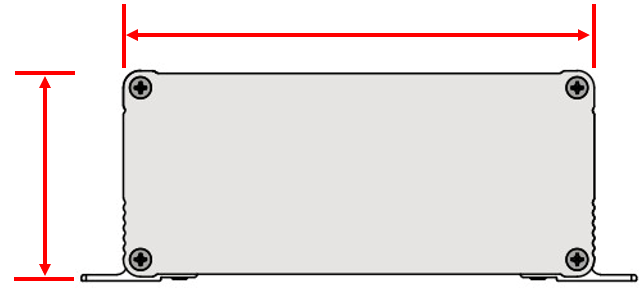

STEP1Select required width / height.
W
H
Flanged panel type
Select W-H No.
61-28
61-38
61-53
81-33
81-43
81-58
106-33
106-48
106-63
141-38
141-53
141-73
141-93
W
H
Flange bracket type
Select W-H No.
187-44
187-62
187-82
187-107
232-52
232-77
232-102
288-78
288-128
STEP2 Specify size D (depth) ・・・ Enter dimension in 0.1mm intervals according to the specifications below.
When W dimension is 141 or smaller When W dimension is 186.5 or larger
D dimension range : 40~500mm D dimension range : 80~500mm
D D
STEP3 Select color type.

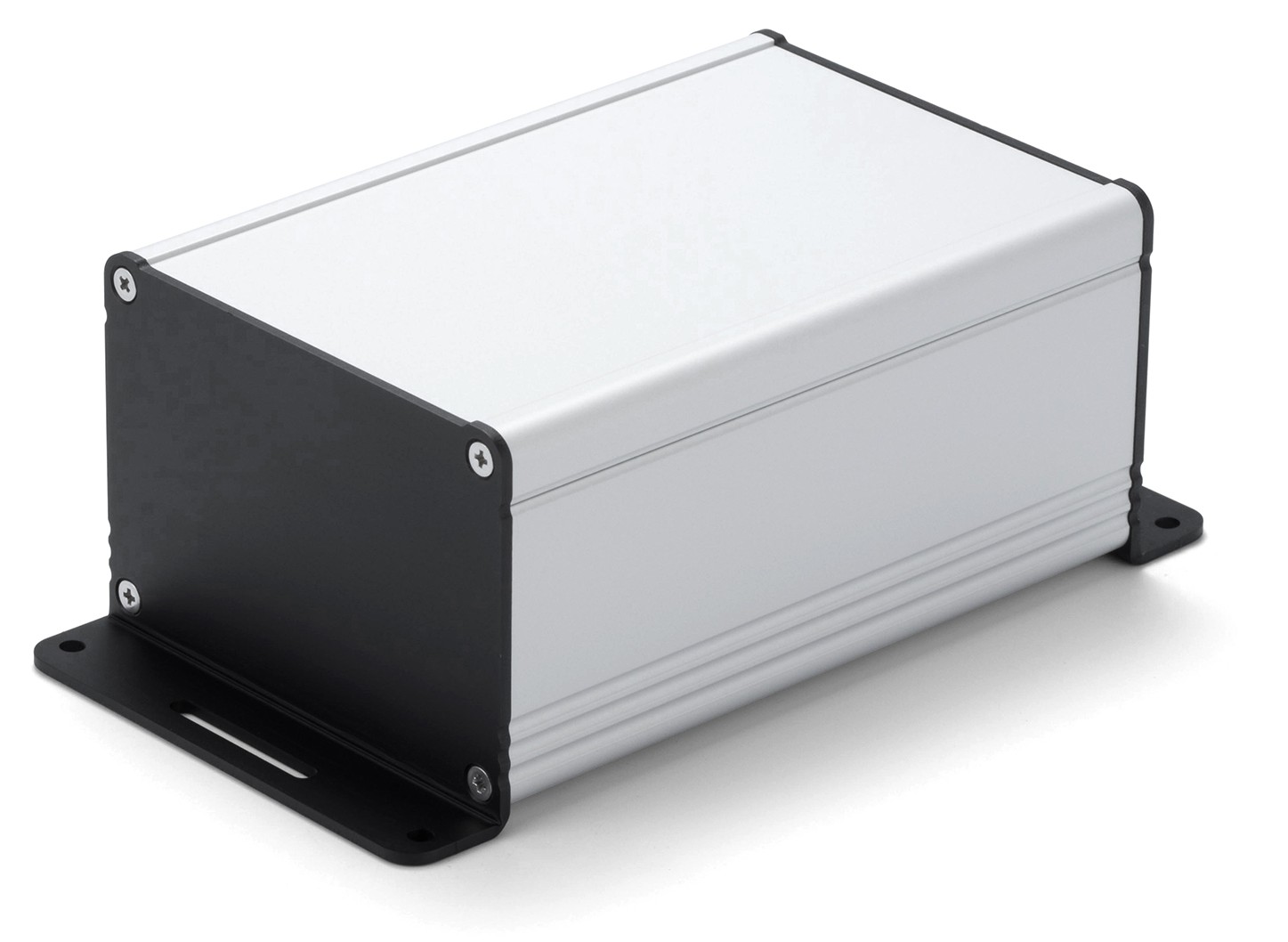

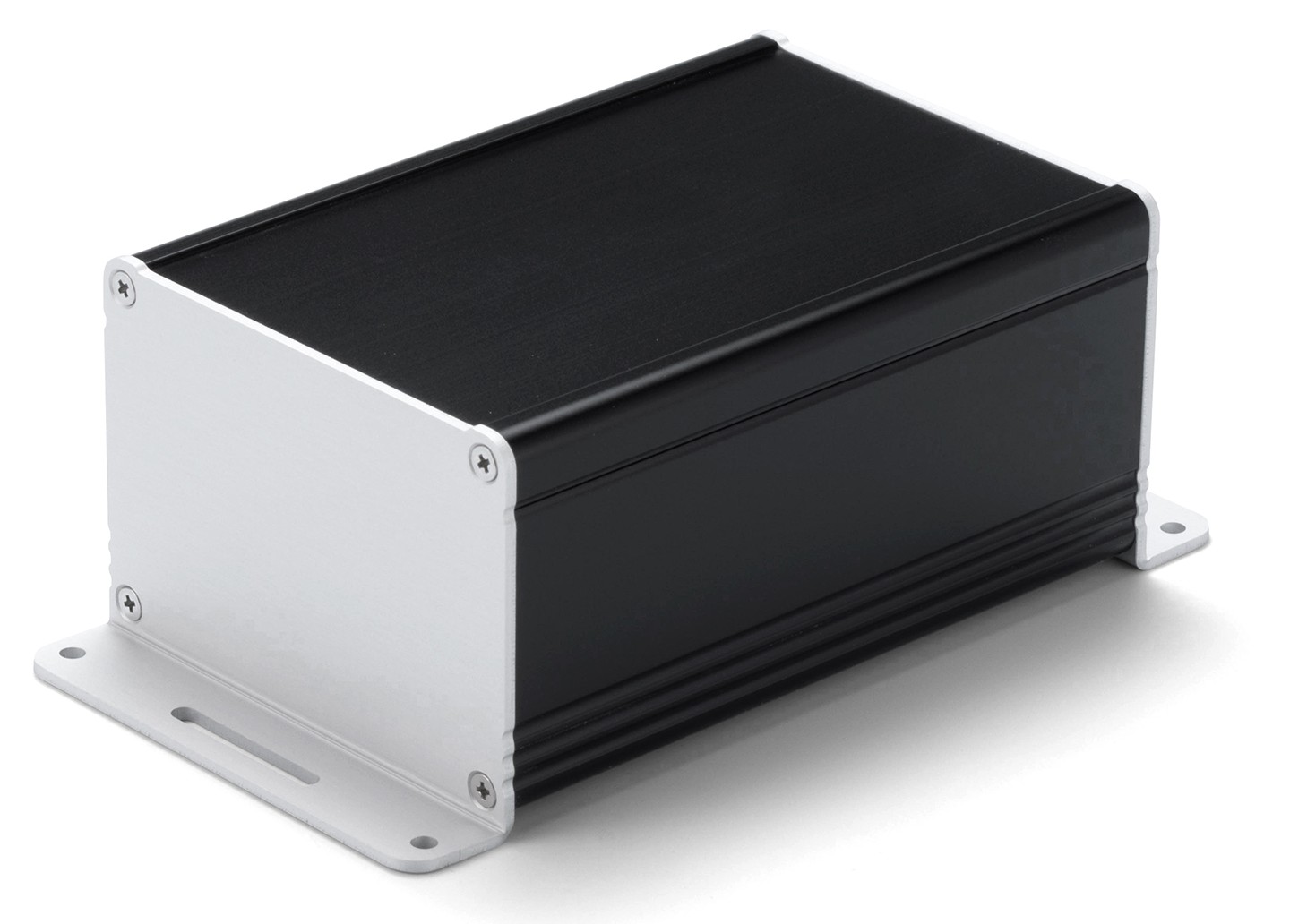

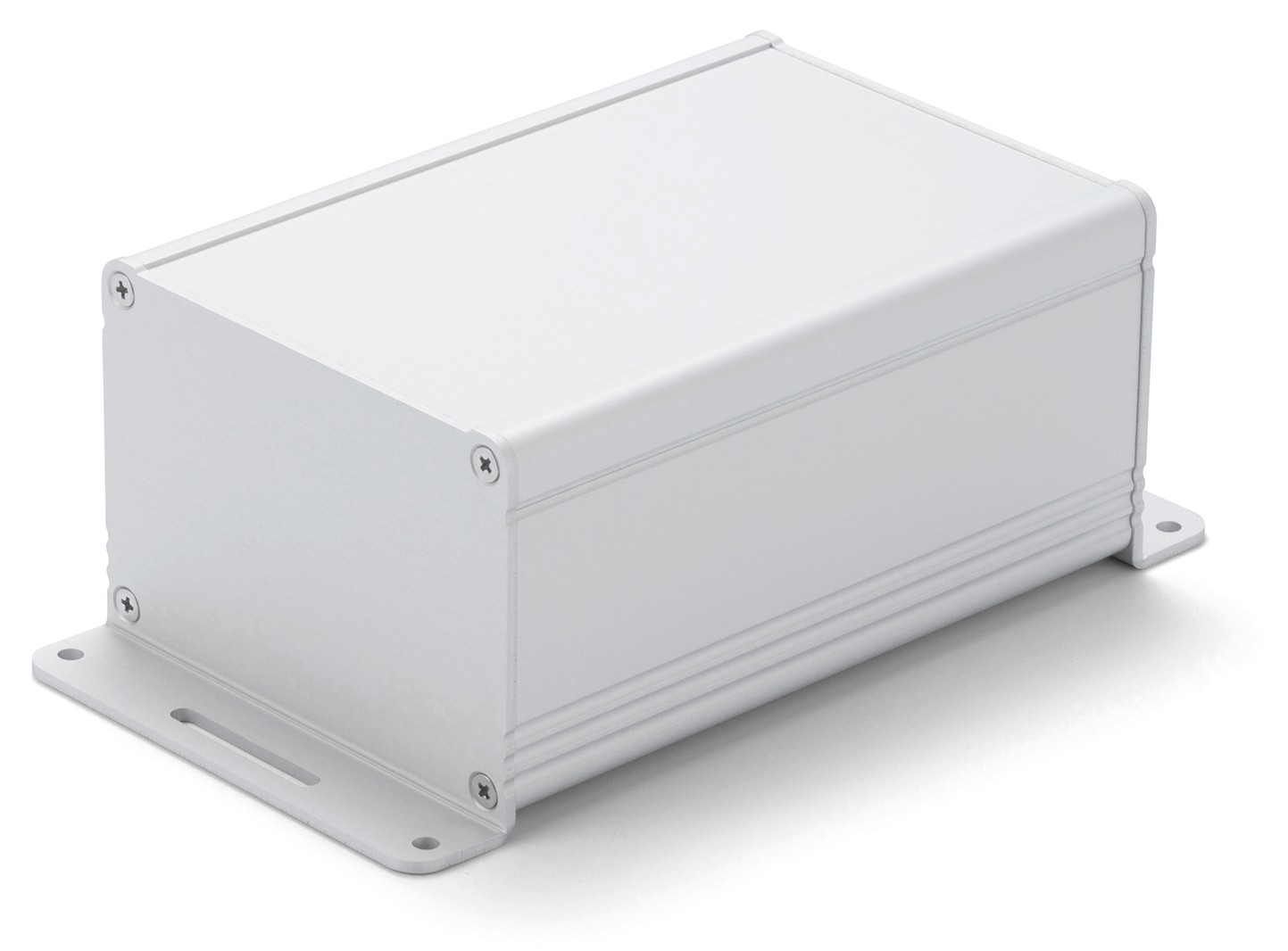

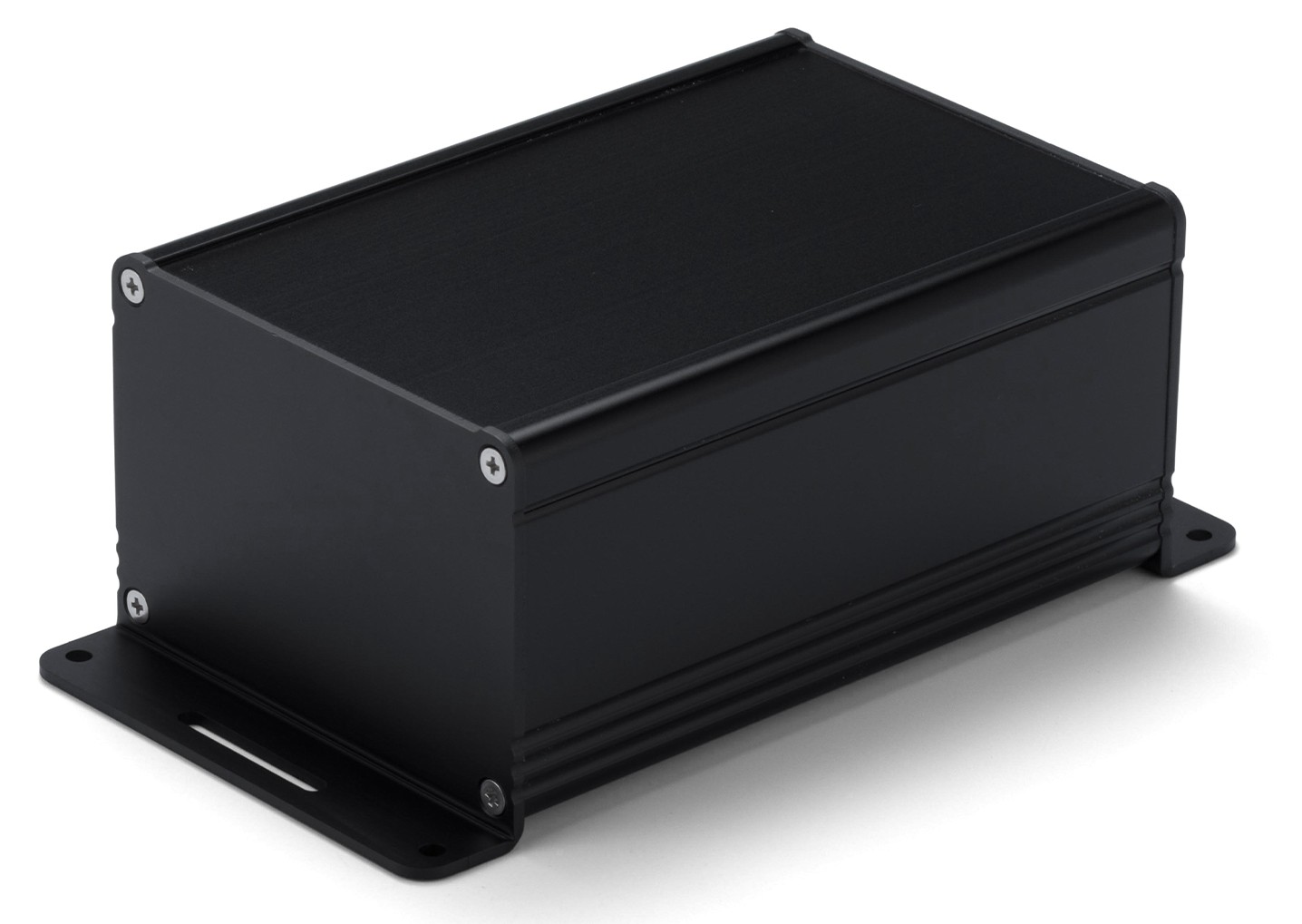

SS SB BS BB
STEP4Quantity ※Quantity can be specified up to 5 slots.

pcs pcs pcs pcs pcs
Product No.
