N Type

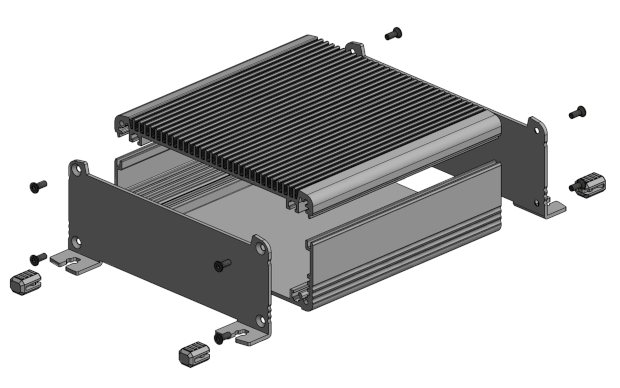

F Type (W = 141mm or smaller)

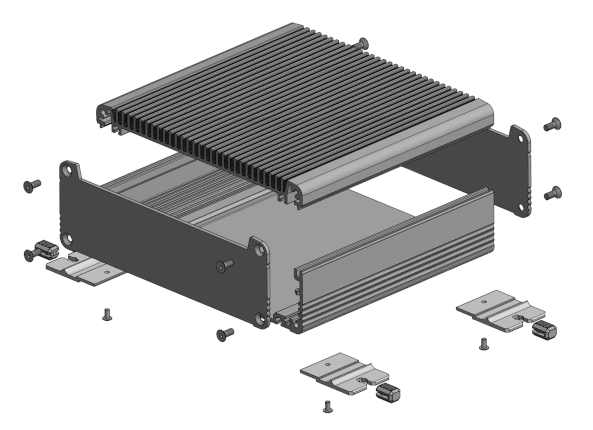

F Type (W = 186.5mm or larger)
STEP1 Select required width / height.
W
H
Select W H Select W H
80.6 30.7 186.5 43.5
80.6 40.7 186.5 61.5
80.6 55.7 186.5 81.5
106 31.1 186.5 106.5
106 46.1 232 52
106 61.1 232 77
141 36.1 232 102
141 51.1 287.5 77.5
141 71.1 287.5 127.5
141 91.1
STEP2 Specify size D(depth) … Enter dimensions in 0.1mm intervals.

Available from 40 to 500mm

* The range for flange bracket "W-H No.187-□ or larger" is limited to 80 mm to 500 mm.
D
*NOTE: Specified size D(depth) =/= available internal dimension
Available internal dimension =
Please take caution when calculating required D dimension.
STEP3Select flange type.
N F
フランジ無し
No flange 		W140.6以下 フランジパネル
W-H No.141-□ or smaller
(Flange panel) 		W186.5以上 フランジブラケット
W-H No.187-□ or larger
(Flange bracket)
STEP4 Select color type.
S B
STEP5 Quantity ※Quantity can be specified up to 5 slots.

pcs pcs pcs pcs pcs
Product No.
