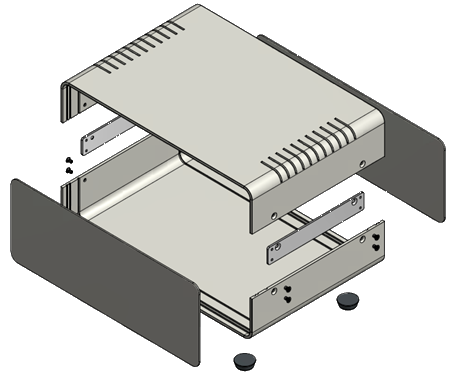

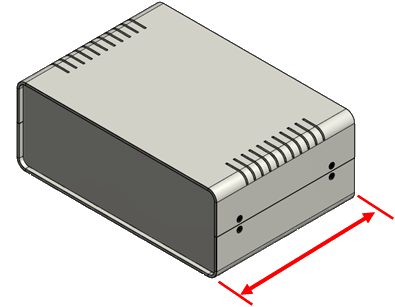

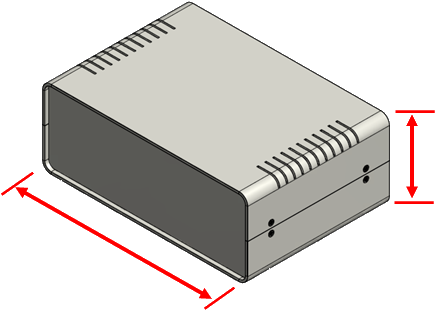

STEP1 Specify size W(width) × H(height) ・・・ Enter the specified dimensions in 1mm units.
Available 50 to 450mm
W
Available 30 to 400mm
H
STEP2 Select required depth.
D
Select D
60
80
100
120
140
160
180
200
220
240
260
280
340

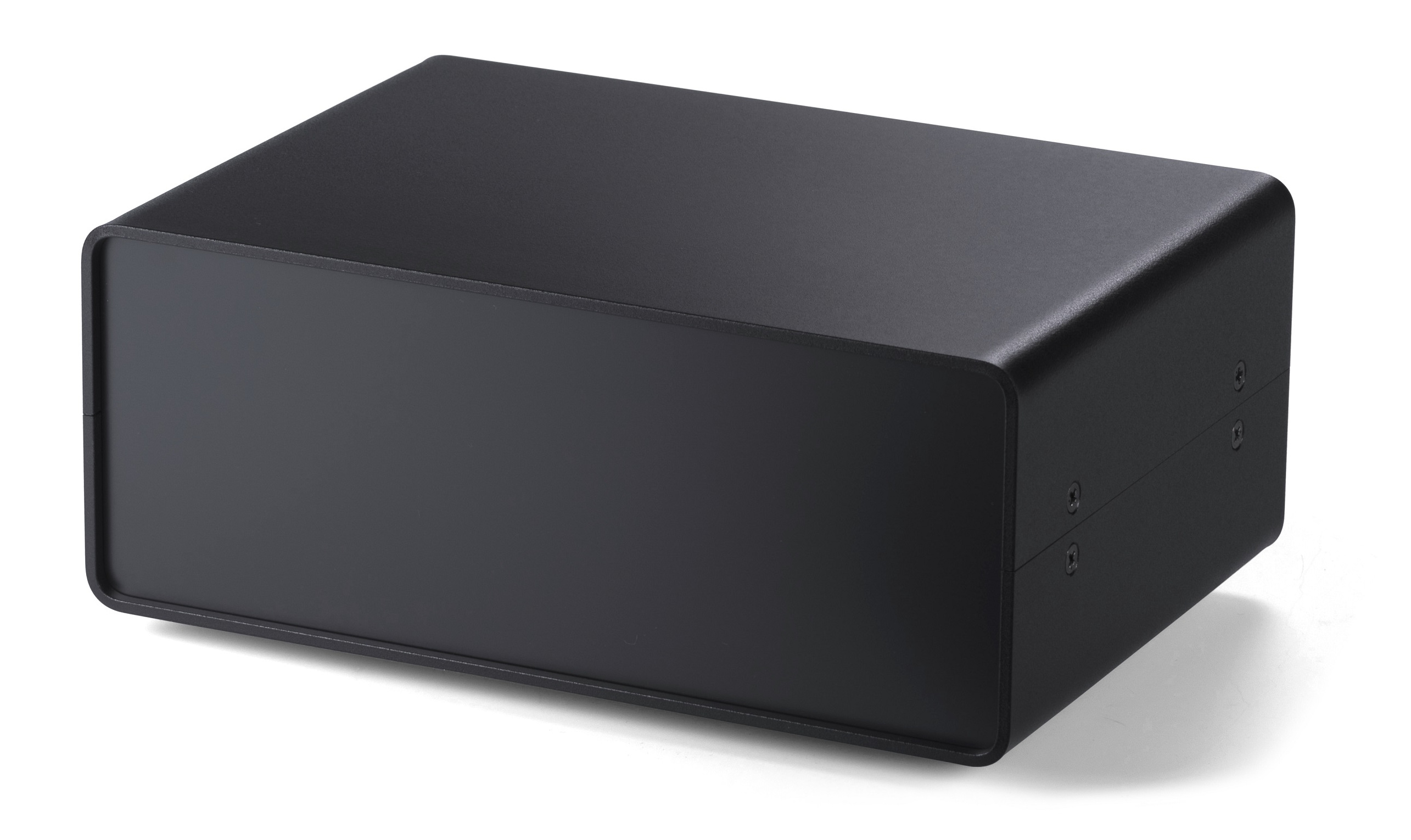

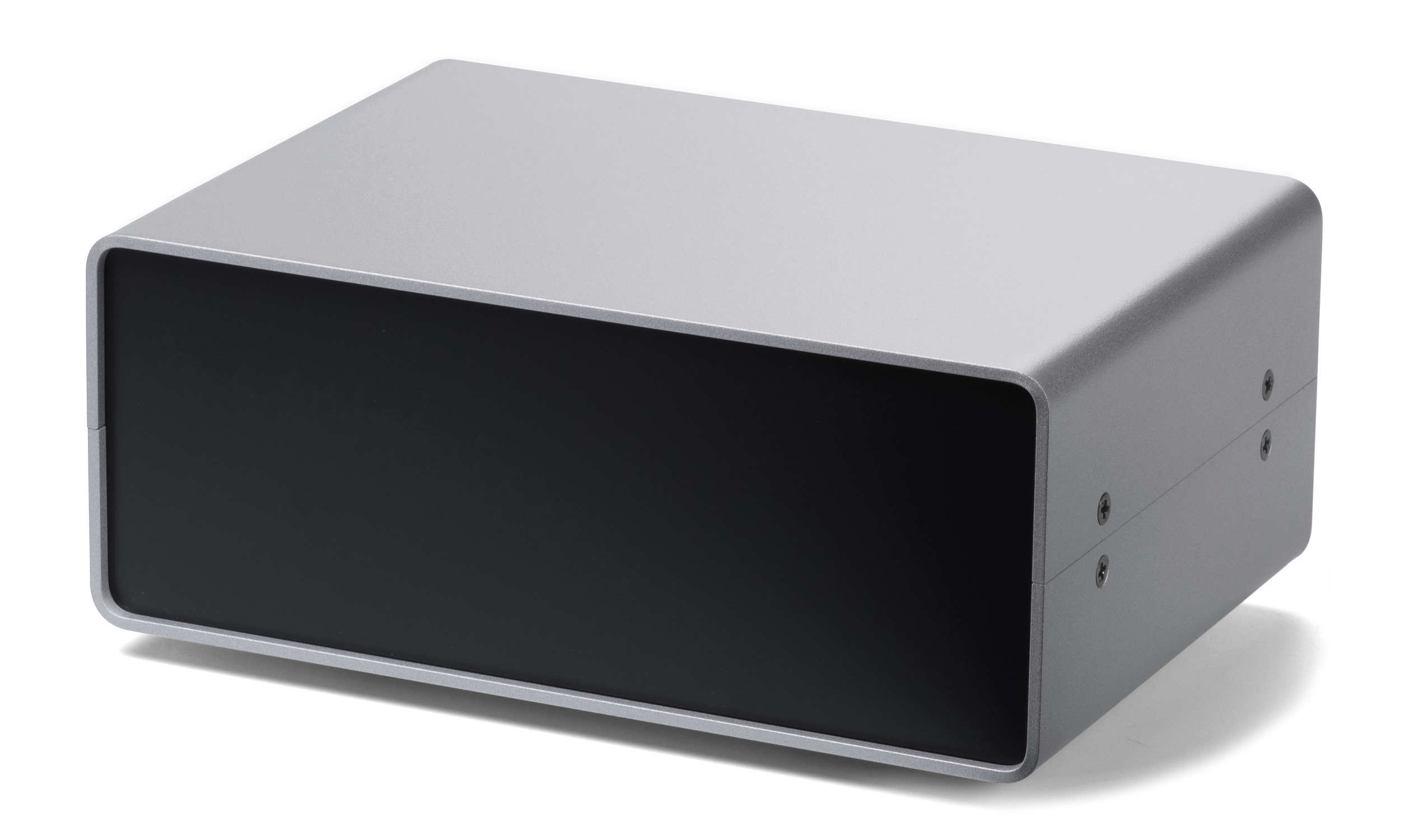

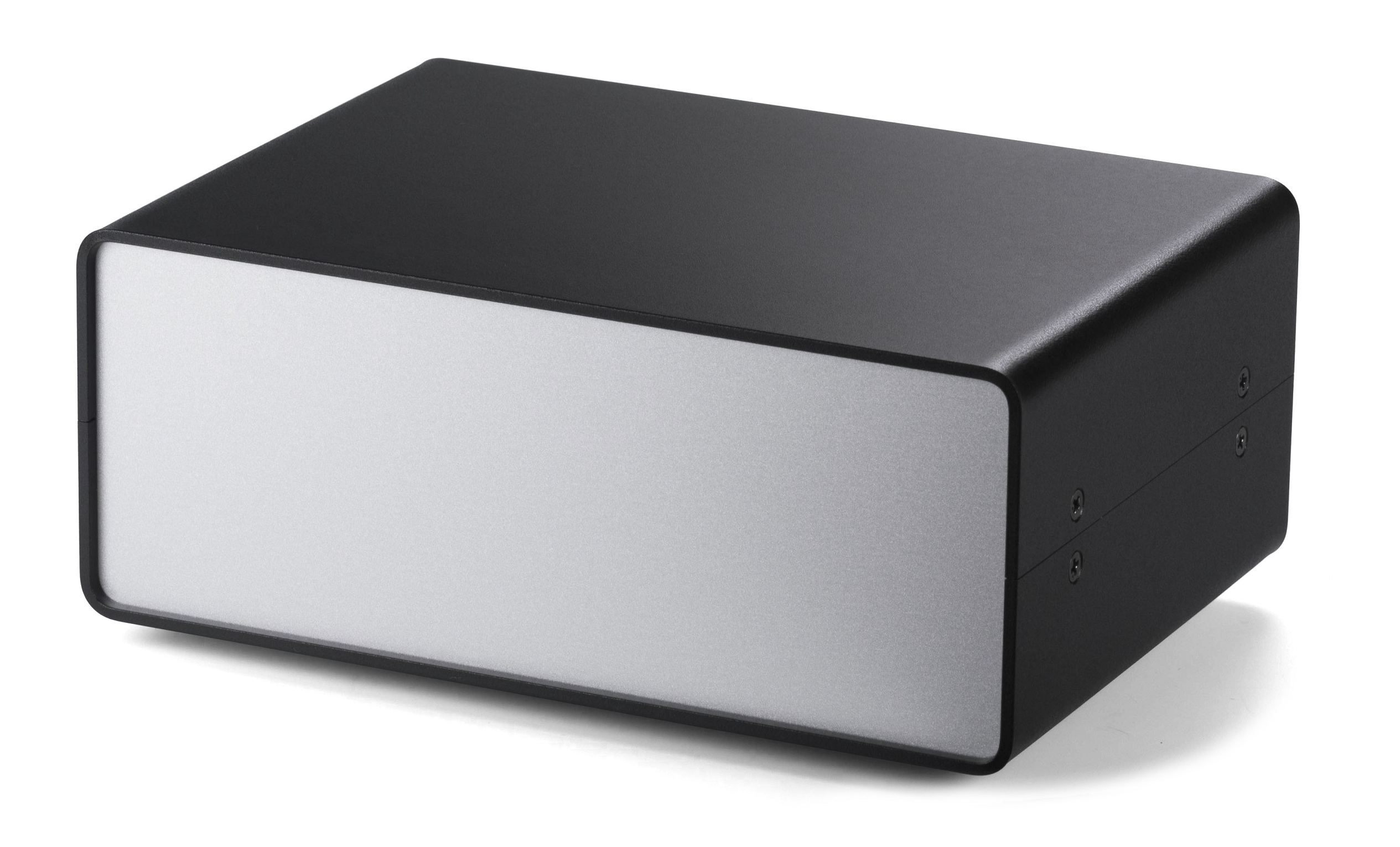

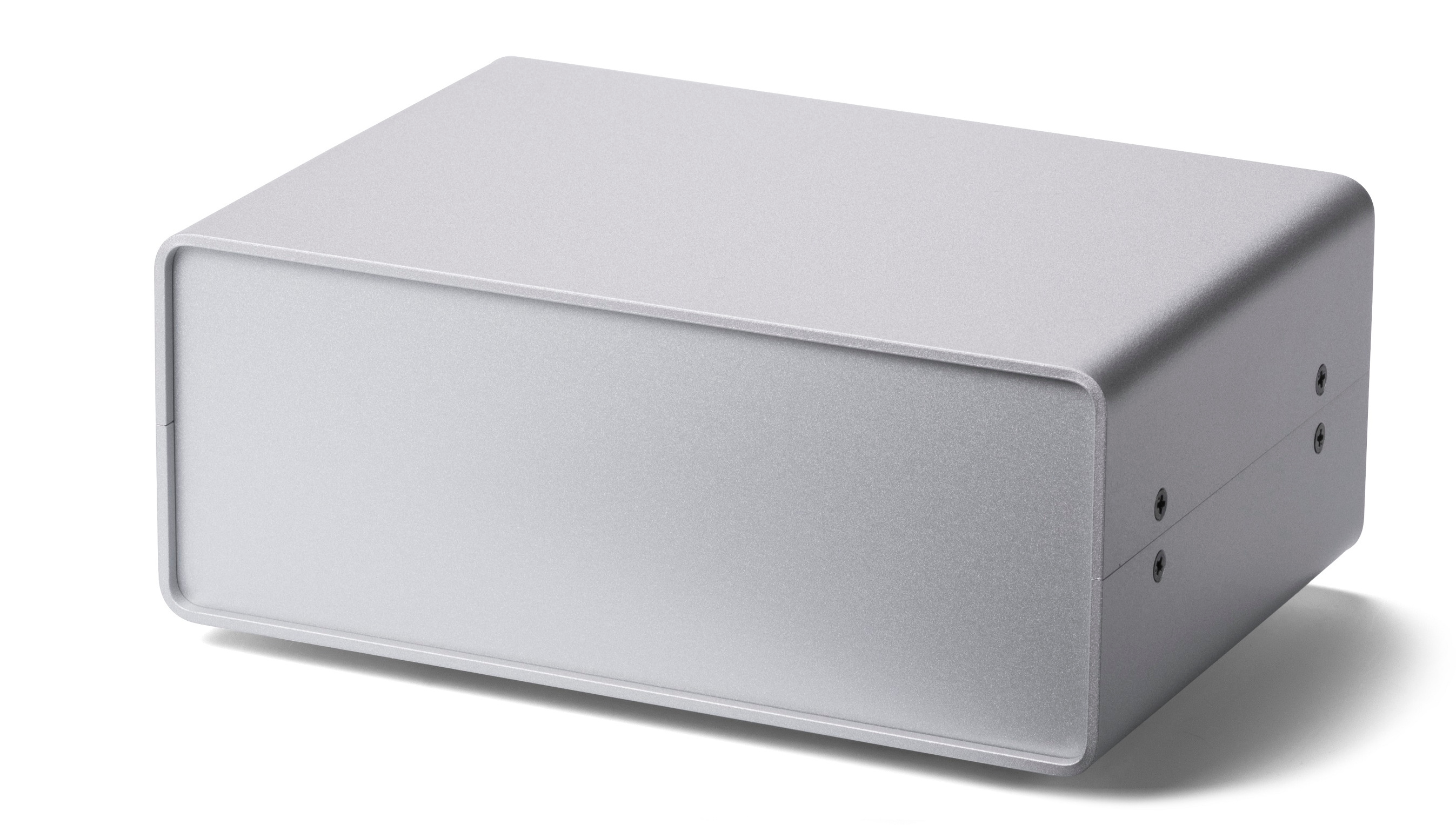

STEP3 Select color type.
BB BS
SB SS
STEP4 Select corner R size.
Select Symbol Corner R dimension Enclosure H dimension requirements Compatible enclosure D (depth) dimension condition
3 3 Internal dimension 26mm or larger 5 depth sizes (60~140)
5 5 Internal dimension 30mm or larger Available for all 13 depth sizes
8 8 Internal dimension 36mm or larger Available for all 13 depth sizes

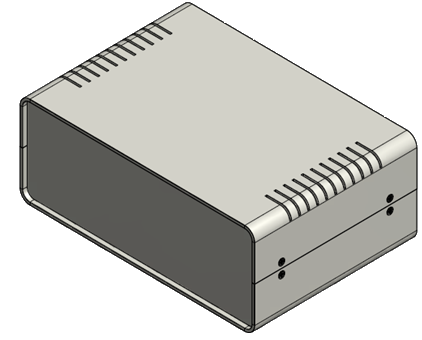

STEP5 Select ventilation slit.
Select Symbol Slit type Slit pitch and position Compatible enclosure D (depth) dimension condition
K No slit — Available for all 13 depth sizes
L 2 x 30mm According to standard UC series 10 depth sizes (120~340)
M 2 x 20mm According to standard UC series 10 depth sizes (120~340)
■ Ventilation slit type L and M can be made from W dimension 60mm, H dimension 45mm.
*Refer to following PDF for standard UC series.

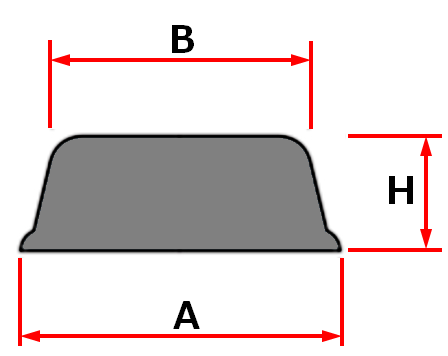

STEP6 Select rubber feet.
Select Symbol A B H
S 10.8 10.2 3
M 15.4 14.8 5.1
L 21 17 7
STEP7Quantity ※Quantity can be specified up to 5 slots.

pcs pcs pcs pcs pcs
